MÁY CHỦ SERVER DELL POWEREDGE T630 E5-2609 V4 CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI THẾ GIỚI SỐ
KEY FEATURES MÁY CHỦ SERVER DELL POWEREDGE T630 E5-2609 V4

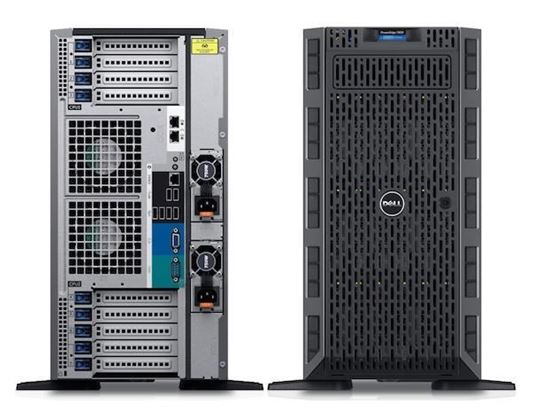

MÁY CHỦ SERVER DELL POWEREDGE T630 E5-2609 V4
- (1) Intel® Xeon® E5-2609 v4 1.7GHz,20M Cache,6.4GT/s QPI,8C/8T (85W) Max Mem 1866MHz
- 8GB RDIMM, 2133MT/s, Single Rank, x8 Data Width
- Hard Drive : None 3.5-inch
- RAID PERC H730 12Gb/s SAS Adapter RAID Controller, 1Gb NV Cache (RAID 0,1,5,6,10,50,60)
- On-Board Intel i350-AM2 Dual Port 1Gb LOM
- iDRAC8 Express, integrated Dell Remote Access Controller, Express
- 8 x 3.5” SAS, SATA, Near-Line SAS, SSD, PCIe SSD
- DVD ROM, SATA, Internal
- Dual, Hot-plug, Redundant Power Supply (1+1), 750W
- Tower (5U rackable)
- Warranty : 3 Year ProSupport and NBD On-site Service
Processor
- Intel® Xeon® processor E5 2600 v4 product family
Operating System
- Microsoft® Windows Server® 2008 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESX®
Chipset
- Intel C610 series chipset
Memory1
- Up to 1.5TB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s
Embedded Hypervisor (Optional)
- Microsoft® Windows Server® 2008, with Hyper-V®
VMware® ESXi
Citrix XenServer
Storage
- SAS, SATA, Near-line SAS, SSD, PCIe SSD
Up to 4 optional Express Flash PCIe SSDs
Up to 144TB via 18 x 8TB 3.5” HDDs
Drive Bays
- Internal hard drive bay and hot-plug backplane:
Up to 8 x 3.5” SAS, SATA, Near-Line SAS, SSD, PCIe SSD drives with optional flex bay
Up to 18 x 3.5” SAS, SATA, Near-Line SAS, SSD drives without optional flex bay
Up to 16 x 2.5” SAS, SATA, Near-line SAS, SSD, PCIe SSD drives with optional flex bay
Up to 32 x 2.5” SAS, SATA, Near-Line SAS, SSD drives with optional flex bay
Slots
- Slot 1: Full Length, Full Height, CPU1 - PCIe Gen3 x16 (x16 connector)
Slot 2: Full Length, Full Height, PCH - PCIe Gen2 x4 (x8 connector)
Slot 3: Full Length, Full Height, CPU1 - PCIe Gen3 x16 (x16 connector)
Slot 4: Half Length, Full Height, CPU2 - PCIe Gen3 x8 (x8 connector)
Slot 5: Full Length, Full Height, CPU2 - PCIe Gen2 (DMI) x4 (x8 connector)
Slot 6: Full Length, Full Height, CPU2 - PCIe Gen3 x16 (x16 connector)
Slot 7: Full Length, Full Height, CPU2 - PCIe Gen3 x16 (x16 connector)
Slot 8: Half Length, Full Height, CPU1 - PCIe Gen3 x8 (x8 connector)
RAID Controllers
- Internal:
PERC S130
PERC H330
PERC H730
PERC H730P
External:
PERC H830
Communications
- Broadcom® 5719 quad-port 1Gb NIC
Broadcom 5720 dual-port 1Gb NIC
Broadcom 57810 dual-port 10Gb DA/SFP+ CNA
Broadcom 57810 dual-port 10Gb Base-T network adapter
Intel® Ethernet I350 dual-port 1Gb server adapter
Intel Ethernet I350 quad-port 1Gb server adapter
Intel Ethernet X540 dual-port 10GBASE-T server adapter
Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter
Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter
Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA
Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA
QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height
Power
- Titanium efficiency 750W AC power supply
Gold efficiency 1100W DC power supply
Platinum efficiency 495W, 750W, 1100W or 1600W AC power supply
Availability
- ECC memory
Hot-plug hard drives
Hot-plug redundant cooling
Hot-plug redundant power
iDRAC8
Internal Dual SD Module
Single Device Data Correction (SDDC)
Spare Rank
Tool-less chassis
Support for high availability clustering and virtualization
Proactive systems management alerts
iDRAC8 with Lifecycle Controller
Graphics Card
- Video Type :Integrated Integrated Matrox G200 with iDRAC8
Video Memory: 16 MB shared with iDRAC8 application memory
GPUs – Support for up to four optional 300W internal GPU processing accelerators
Chassis
- Form Factor: 5U
Height 443.5 mm (17.5 inch) with feet
434.5 mm (17.1 inch) without feet
Width:48.2cm (18.98”)
Depth:75.09cm (29.56”)
Max Weight:
T630 full system with 2.5” HDD:
Max 2.5"x16 (6 fans) 37.57Kg/82.75lb
Max 2.5"x32 (6 fans) 40.55Kg/89.32lb
T630 full system with 3.5” HDD:
Max 3.5"x18 (6 fans) 49.65 Kg/109.36 lb
Management
- Dell OpenManage portfolio of systems management solutions, including:
OpenManage Essentials console
iDRAC8 with Lifecycle Controller
