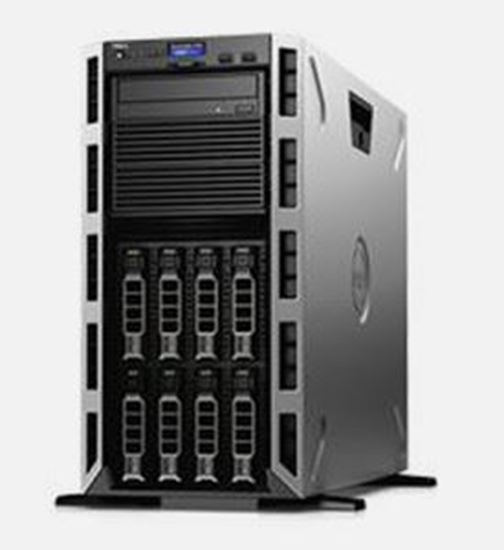

MÁY CHỦ SERVER DELL POWEREDGE T430 3.5” E5-2683 V3 CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI THẾ GIỚI SỐ
KEY FEATURES MÁY CHỦ SERVER DELL POWEREDGE T430 3.5” E5-2683 V3
MÁY CHỦ SERVER DELL POWEREDGE T430 3.5” E5-2683 V3
- (1) Intel® Xeon® E5-2683 v3 2.0GHz,35M Cache,9.60GT/s QPI,Turbo,HT,14C/28T (120W) Max Mem 2133MHz
- 8GB RDIMM, 2133MT/s, Single Rank, x8 Data Width
- Hard Drive : None 3.5-inch
- PERC H330 Adapter 12Gb/s SAS PCI-Express 3.0
2x4 Internal No Cache ( Raid 0,1,5,10,50 ) - On-Board Broadcom 5720 Dual Port 1Gb LOM
- iDRAC8 Express, integrated Dell Remote Access Controller, Express
- 8 x 3.5" HDD HDD hot-plug SAS, SATA, SSD
- DVD ROM, SATA, Internal
- Hot-plug, redundant 495W power supply (2/2)
- Tower (5U rackable)
- Warranty : 3 Year ProSupport and NBD On-site Service
Processor
- Intel® Xeon® processor E5-2600 v4 product family
Processor sockets: 2
Operating System
- Microsoft® Windows Server® 2008 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESX®
Chipset
- Intel C610 series chipset
Memory1
- Up to 2133MT/s DDR4 DIMMs
Maximum RAM: Up to 384GB (12 DIMM slots): 4GB/8GB/16GB/32GB
Embedded Hypervisor (Optional)
- Citrix® XenServer®
Microsoft® Windows Server® 2008, with Hyper-V®
VMware® vSphere
Storage
- SAS, SATA, nearline SAS, SSD
Drive Bays
- Up to 8 x3.5” SAS, SATA, nearline SAS, SSD drives with optional flex bay
Up to 4 x3.5” SAS, SATA, nearline SAS, SSD drives with optional flex bay
Up to 16 x 2.5” SAS, SATA, nearline SAS, SSD drives with optional flex bay
Slots
- Support for up to 2 x PCIe 2.0 + 4 x PCIe 3.0
RAID Controllers
- Support for a maximum of 1 internal controller and one external controller
PERC Η730,PERC Η730P and PERC Η830
Network Controller
- 2 x 1GbE LOMs
Communications
- Broadcom 5720
Optional add-in NICs
Power
- 495W, 750W, 1100W hot-plug PSU
450W cabled PSU
Availability
- ECC memory
Single Device Data Correction (SDDC)
Spare Rank
Hot-plug hard drives
Hot-plug redundant power
iDRAC8 with Lifecycle Controller
Support for HA clustering
Virtualization-ready
Internal Dual SD Module (Failsafe Hypervisor)
TPM 1.2
Graphics Card
- Video Type: Integrated Matrox® G200 with iDRAC8
Video Memory: 16 MB shared with iDRAC8 application memory
Chassis
-
Height: Chassis base height - 430.3 mm (17.04”) With feet - 443.3 mm (17.45”) Width: Chassis base width 5U - 218 mm (8.58”) With feet - 304.5 mm (11.98”) Depth: front to rear wall (with bezel) - 558.6 mm (21.99”)
Management
-
Systems management:
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage Mobile
Dell OpenManage Power CenterRemote management:
iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade),16GB vFlash media (upgrade), iDRAC Quick Sync
Dell OpenManage Integrations:
Dell OpenManage Integration Suite for
Microsoft® System Center
Dell OpenManage Integration for VMware® vCenter™
Dell OpenManage Connections:
HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management
Dell OpenManage Plug-in for Oracle® Database Manager
