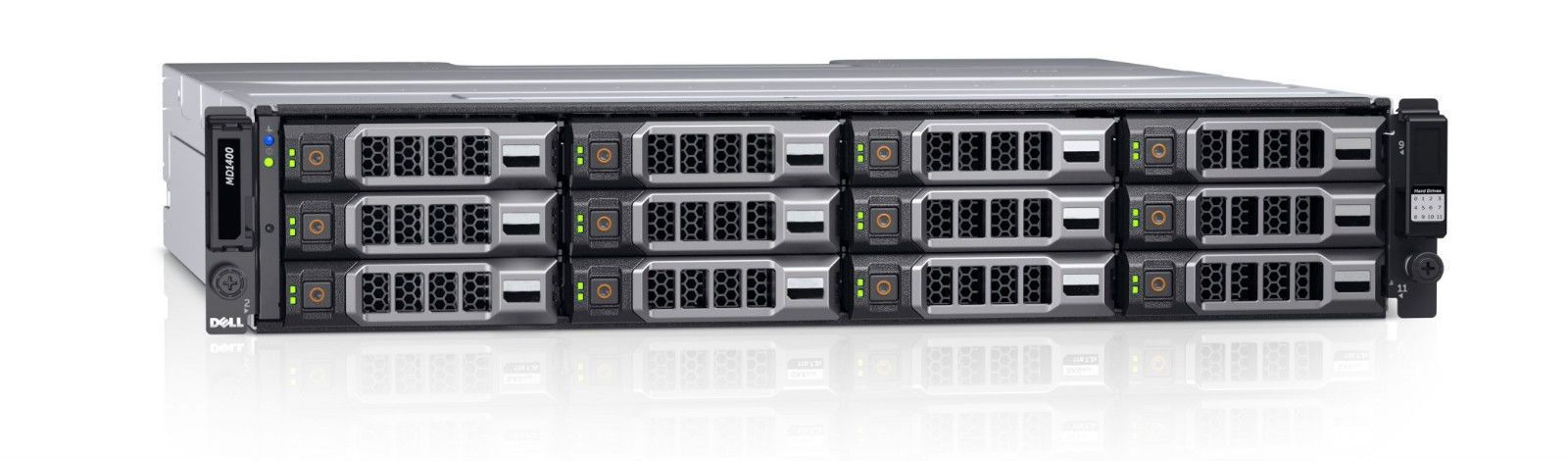

MÁY CHỦ SERVER DELL STORAGE POWERVAULT MD1400 DAS Storage


Mã sản phẩm: Vui lòng liên hệ
Số lượng:
Giá bán: 0 VND

MÁY CHỦ SERVER DELL STORAGE PowerVault MD1400 DAS Storage CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ tại THẾ GIỚI SỐ

KEY FEATURES MÁY CHỦ SERVER DELL STORAGE POWERVAULT MD1400 DAS Storage

High-density direct-attached storage (DAS) designed to work with the latest generation of PowerEdge servers. Offers exceptional storage flexibility and IO performance and includes support for:

  • Up to 12 x 12Gb HDDs or SSDs
  • Up to 960TB maximum capacity with eight MD1400 enclosures (each with 12 x 10TB 7200 rpm 3.5" SAS HDDs) per server

MÁY CHỦ SERVER DELL STORAGE PowerVault MD1400 DAS Storage

Feature MD1400 MD1420
Drive count per chassis Up to 12 hot-pluggable 3.5" and 2.5" drives (2.5" available with adapter) Up to 24 hot-pluggable 2.5" drives
Drive performance and capacities 3.5" NL-SAS 6Gb HDD (7.2K): 1TB, 2TB, 4TB
3.5" NL-SAS 512e 12Gb HDD (7.2K): 6TB, 8TB, 10TB
2.5” SAS 6Gb HDD (7.2K): 500GB
2.5” SAS 6Gb HDD (10K): 300GB, 600GB, 1.2TB, 1.8TB
2.5” NL-SAS 12Gb HDD (7.2K): 2TB
2.5” SAS 12Gb SED (15K): 600GB
2.5” SAS 6Gb HDD (15K): 300GB, 600GB
2.5” SAS 12Gb SSD: 200GB, 400GB, 800GB (WI); 200GB, 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI)
2.5” NL-SAS 6Gb HDD (7.2K): 500GB, 1TB
2.5” NL-SAS 12Gb HDD (7.2K): 2TB
2.5” SAS 6Gb HDD (10K): 300GB, 600GB, 1.2TB, 1.8TB
2.5” SAS 6Gb SED (10K): 1.2TB
2.5” SAS 6Gb HDD (15K): 300GB, 600GB
2.5” SAS 12Gb SED (15K): 600GB
2.5” SAS 12Gb SSD: 200GB, 400GB, 800GB (WI); 200GB, 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI)
Maximum capacity per enclosure Up to 120TB when using 12 x 10TB NL-SAS 3.5" HDDs Up to 48TB when using 24 x 2TB NL-SAS
 2.5" HDDs
Expansion capabilities PERC H830 HBA enables expansion to 8 enclosures, PCIe 3.0, 12Gbps SAS, dual-port, 4 ports per enclosure PERC H830 HBA enables expansion to 8 enclosures, PCIe 3.0, 12Gbps SAS, dual-port, 4 ports per enclosure
Unified mode Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H830 (4 enclosures per port, single path)
Unified mode (recommended redundant path) for daisy chaining up to 4 enclosures per PERC H830 (4 enclosures connected to both ports via redundant path cabling)
Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H830 (4 enclosures per port, single path)
Unified mode (recommended redundant path) for daisy chaining up to 4 enclosures per PERC H830 (4 enclosures connected to both ports via redundant path cabling)
Enclosure Management Modules (EMM) 2 EMM provide redundant enclosure management capability 2 EMM provide redundant enclosure management capability
RAID levels 0, 1, 5, 6, 10, 50 and 60 0, 1, 5, 6, 10, 50 and 60
Connectivity per EMM 4 mini-SAS HD connector for connection to the host or expansion 4 mini-SAS HD connector for connection to the host or expansion
Service management USB mini b connector (for factory use only) USB mini b connector (for factory use only)
Wattage – also supports DC power AC – 600W; DC – 700W AC – 600W; DC – 700W
Host heat dissipation AC – 2047 BTU/hr; DC – 2388 BTU/hr AC – 2047 BTU/hr; DC – 2388 BTU/hr
Input voltage range 100-240 VAC, auto-sensing; 48 V DC 100-240 VAC, auto-sensing; 48 V DC
Frequency range 50/60 Hz 50/60 Hz
Amperage 8.6 A at 100 V, 4.3 A at 240 V 8.6 A at 100 V, 4.3 A at 240 V
Supported continuous consumption Up to 1.2 A at +5V
Up to 0.5 A at +12V
Up to 1.2 A at +5V
Up to 0.5 A at +12V
Rack Support Dell ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks Dell ReadyRails II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks
Height x width x depth 8.7 cm (3.39") x 48.2 cm (18.8") x 54.1 cm (29.1") 8.7 cm (3.39") x 48.2 cm (18.8") x 54.1 cm (29.1")
Weight 28.59 kg (63.03 lb) (maximum configuration)
9.0 kg (19.8 lb ) (empty)
24.2 kg (53.35 lb) (maximum configuration)
8.8 kg (19.4 lb) (empty)
Temperature Operating: 10° to 35°C (50° to 95°F) with maximum temperature gradation of 10°C per hour Storage: -40° to 65°C (-40° to 149°F) with temperature gradation of 20°C per hour Operating: 10° to 35°C (50° to 95°F) with maximum temperature gradation of 10°C per hour Storage: -40° to 65°C (-40° to 149°F) with temperature gradation of 20°C per hour
Relative Humidity Operating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour Storage: 5% to 95% (non-condensing) Operating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour Storage: 5% to 95% (non-condensing)
Altitude Operating: -16 to 3048 m (-50 to 10,000 ft)
Storage: -16 to 10,600 m (-50 to 35,000 ft)
Operating: -16 to 3048 m (-50 to 10,000 ft)
Storage: -16 to 10,600 m (-50 to 35,000 ft)
