MODEL

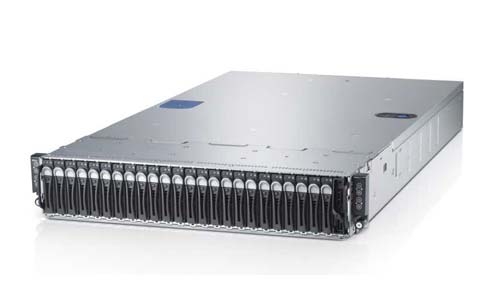

Dell PowerEdge C6220 CPU E5-2670

Chipset

Intel® C602 Chipset

Max Processor

5

PROCESSOR

            4 x Intel® Xeon® Processor E5-2670 (20M Cache, 2.60Ghz, 8.00 GT/s)
Up to four 2-socket servers, 2, 4, 6, or 8 cores per processor Intel® Xeon™ E5-2600 product family, with L3 cache: up to 20MB

MEMORY

32 x 16GB DDR3 1600 240-Pin DDR3 ECC RDIMMs

HDD

None

Raid Controller

4 x LSI 9265-8i SAS

Network Controller

Intel Ethernet Controller i350 - 2 x 1Gb Ethernet
1 x 100Mb Ethernet dedicated management port

Graphics Card

            Integrated AST2300 with up to 16MB video RAM

POWER

2 x Power Supply 750 watt

Form Factor

2U Rackmount

OS Supports

Microsoft Windows Server 2012/Microsoft Windows Server 2008 R2/Microsoft Windows Server 2008, SBS 2011, Red Hat Linux, SUSE Linux
